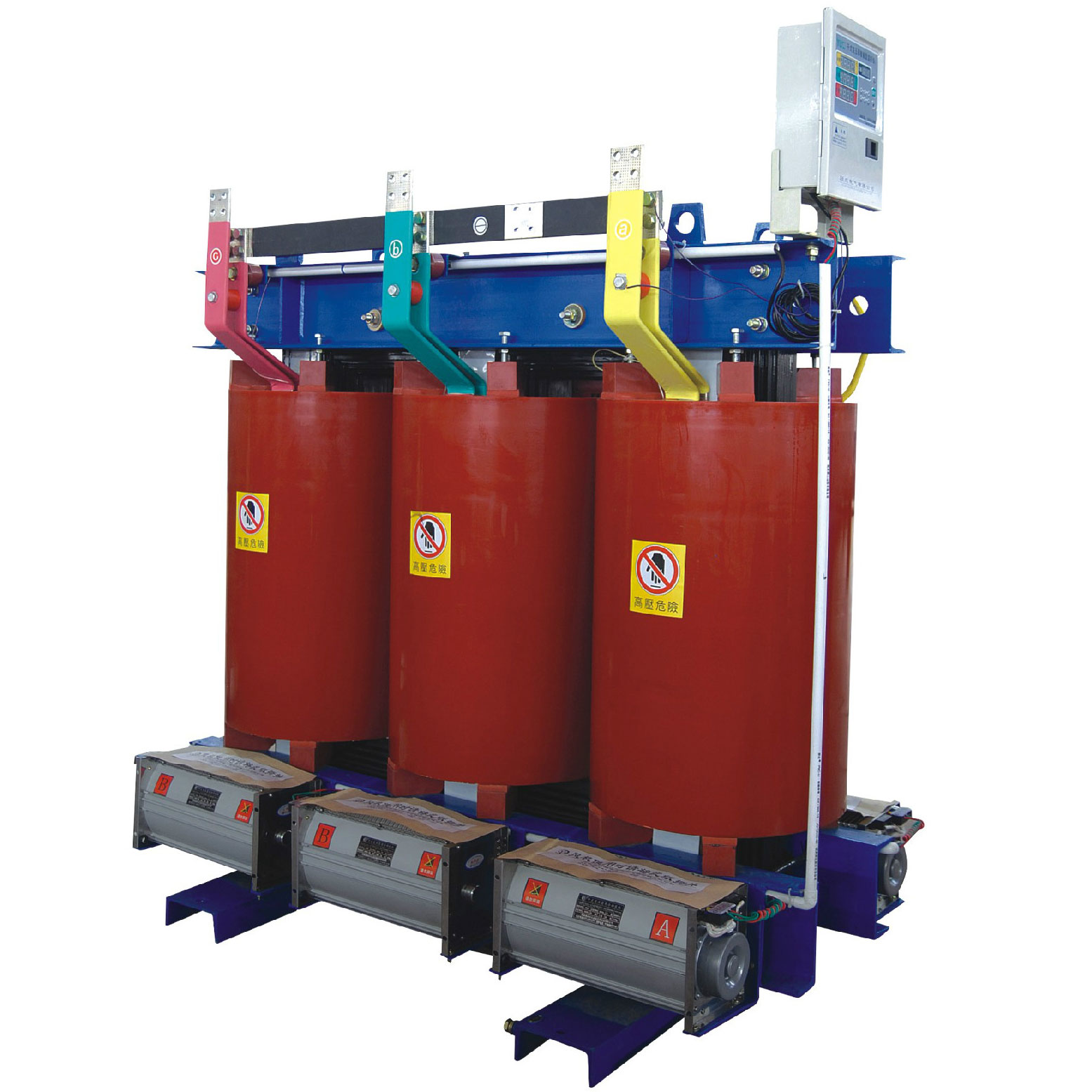

SCB13 Dry Type Transformer energy conservation

SCB13 Series Dry Type Transformer energy conservation 30KVA~4000KVA 11KV~35KV

online service

Tel:86-577-62803669

Email: cntal2012@gmail.com

Skype: yeerbo1991

WhatsApp: +86 15067876688

The main technical parameters

SCB13 Type 11kv

Rated capacityKVA

Voltage Combination and  tap  range

connection of transformer winding

No-load loss

(w)

Load loss (W)

No-load current (%)

Short circuit impedance (%)

High voltage(KV)

High voltage taps range (%)

Low voltage(KV)

30

50

80

100

125

160

200

250

315

400

500

630

630

800

1000

1250

1600

2000

2500















6

6.6

6.6

10

10.5

11





















±5%

 ±2x2.5%





















  0.4























Dyn11



130

190

260

280

330

380

435

505

615

685

810

940

910

1065

1240

1460

1715

2135

2520

710

1000

1380

1570

1850

2130

2530

2760

3470

3990

4880

5880

5960

6960

8130

9690

11730

14450

17170

2.6

2.2

2.2

2

1.8

1.8

1.6

1.6

1.4

1.4

1.4

1.2

1.2

1.2

1.1

1.1

1.1

1.0

1.0

4

4

4

4

4

4

4

4

4

4

4

4

6

6

6

6

6

6

6
