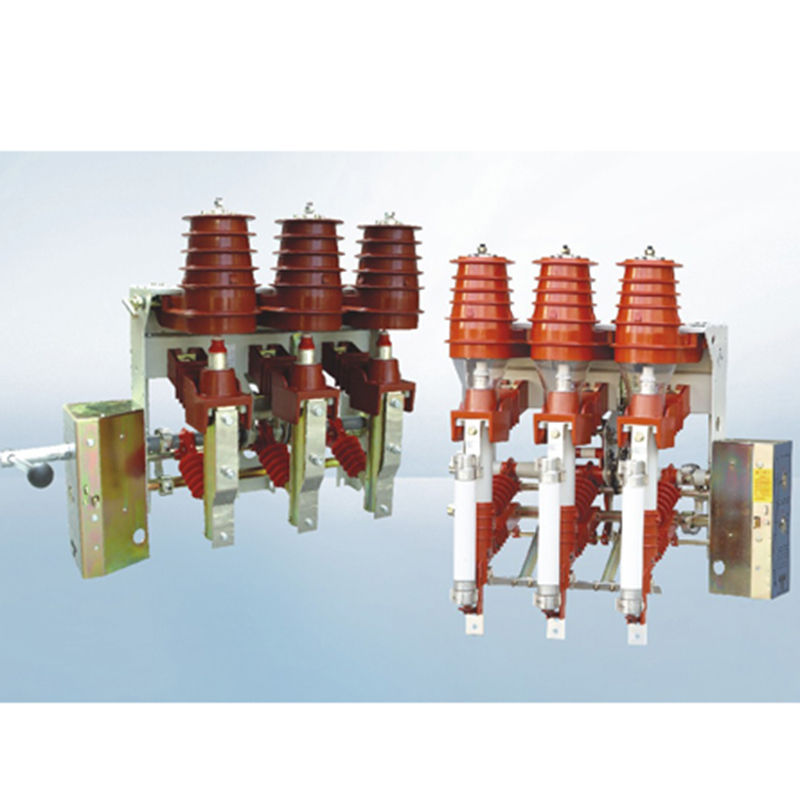

FKN12-12(R)Air High Voltage Load Break Switch With Fuse
Application
Using Condition
Ambient temperature 25℃±40℃;Elevation 1000m;
Humidity: daily average humidity ≤95% ，monthly≤ 90%；
No risk of fire, explosion, serious pollution, chemical corrosion and severe vibration；
If use out of above condition ,please contact with the manufacture.
|
No. |
Item |
Unit |
FKN-12D/630-20 |
FZN-12R.D/125-31.5 |
|
1 |
Rated voltage |
kV |
12 |
|
|
2 |
Rated frequency |
Hz |
50 |
|
|
3 |
Rated ampere |
A |
630 |
125 |
|
4 |
Thunder voltage |
kV |
Isolation:85 |
|
|
5 |
1min voltage |
kV |
Earthling 42, isolation:48 |
|
|
6 |
Ampere |
kA |
20(4S) |
|
|
7 |
Stable current |
kA |
50 |
|
|
8 |
current |
kA |
50 |
- |
|
9 |
Breaking current |
kA |
- |
31.5 |
|
10 |
Moving current |
kA |
- |
1.5 |
|
11 |
Breaking ampere |
kA |
1.8 |
|
|
12 |
Transformer capacity |
kVA |
1250 |
|
|
13 |
Power charge current |
A |
10 |
|
|
14 |
Breaking times |
times |
＞100 |
|
|
15 |
Breaking time |
S |
- |
＞0.06 |
|
16 |
current |
kA |
20(2S) |
20(2S) |
|
17 |
Earthling switch voltage |
kA |
50 |
50 |
|
18 |
Motor voltage |
V |
AC220, DC48 |
|
