High voltage switchgears

General

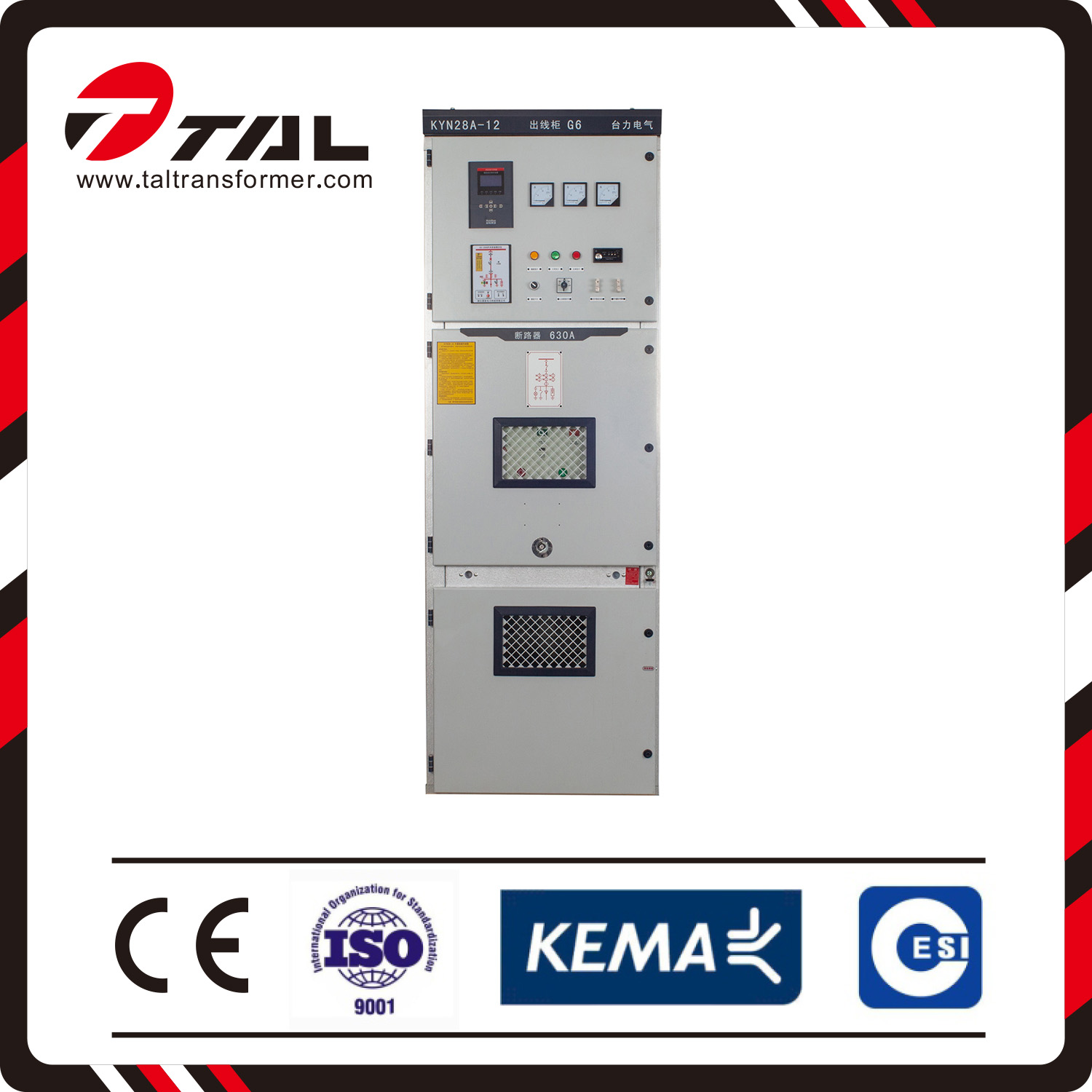

KYN28 indoor metal-clad withdrawable switchgear(hereinafter short as switchgear)is a complete power distribution device for 3.6~24kV,3-phase AC 50Hz,single-bus and single-bus sectionalized system. It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system. The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker, it can also be used with VD4 from ABB,3AH5 from Siemens domestic ZN65A,and VB2 from GE, etc.,it is truly a power distribution device with good performance.
In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.
Service condition
1. Air temperature: Maximum temperature: +40ºC; Minimum temperature:-15ºC

2. Humidity: Monthly average humidity 95%; Daily average humidity 90% .

3.Altitude above sea level: Maximum installation altitude: 1000M.

4.Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

5. No frequent violent shake

Conditions of use

Ambient temperature: 15℃~+40℃

Altitude: ≤1000m

Relative Humidity: daily average  relative humidity :≤95%, daily average vapor pressure not exceeding 2.2KPa; monthly mean relative humidity≤ 90%；the average monthly water vapor pressure not exceeding 1.8KPa；

Seismic intensity：no more than 8；

Surroundings：air should not be obviously polluted corrosive or flammable gases，water vapor，no severe vibration place；

Under normal conditions of use specified beyond GB3906 ，negotiated by the user and the company.

The main technical parameters
