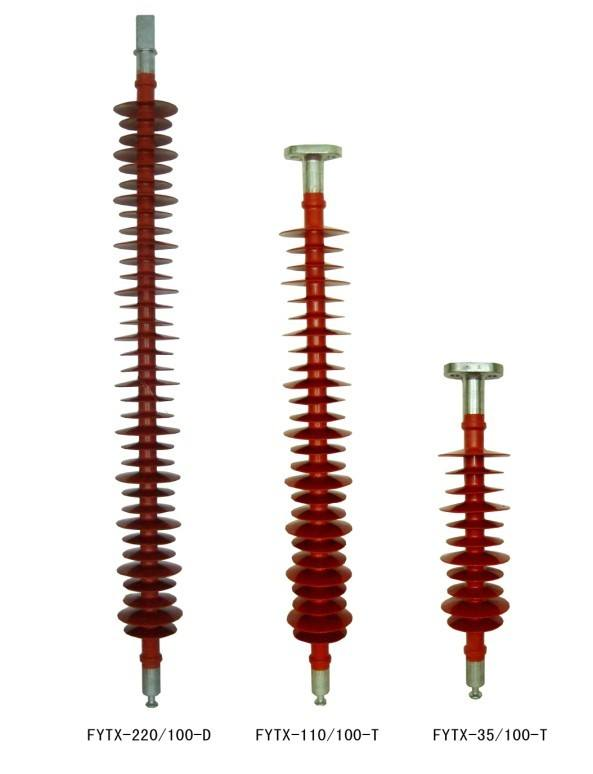

35-220KV Composite Windbreak Insulator

35-220KV Composite Windbreak Insulator

online service

Tel:86-577-62803669

Email: cntal2012@gmail.com

Skype: yeerbo1991

WhatsApp: +86 15067876688

Main technical parameters(performance meet the GB/ T20142-2006,IEC61592)

Product model

Rated voltage (kV)

Rated mechanical bending load (KN)

Rated mechanical load (KN)

Structure height='auto' rea H (mm)

Minimum Arc distance Li(mm)

Min.creepage distance Lc.(mm)

Lightning impulse withstand voltage

(peak)(kV)

P.F1 min wet withstand voltage (virtual value) (kV)

Connect size

FSP-35/0.8-AQ(TQ)

35

0.8

100

710±15

470

1380

230

95

16

FSP-66/0.8-AQ(TQ)

66

0.8

100

950±15

710

2200

410

185

16

FSP-110/0.8-AQ(TQ)

110

0.8

100

1440±15

1200

3800

550

230

16

FSP-220/0.8-AQ(TQ)

220

0.8

100

2250±15

2050

7280

1000

385

16
