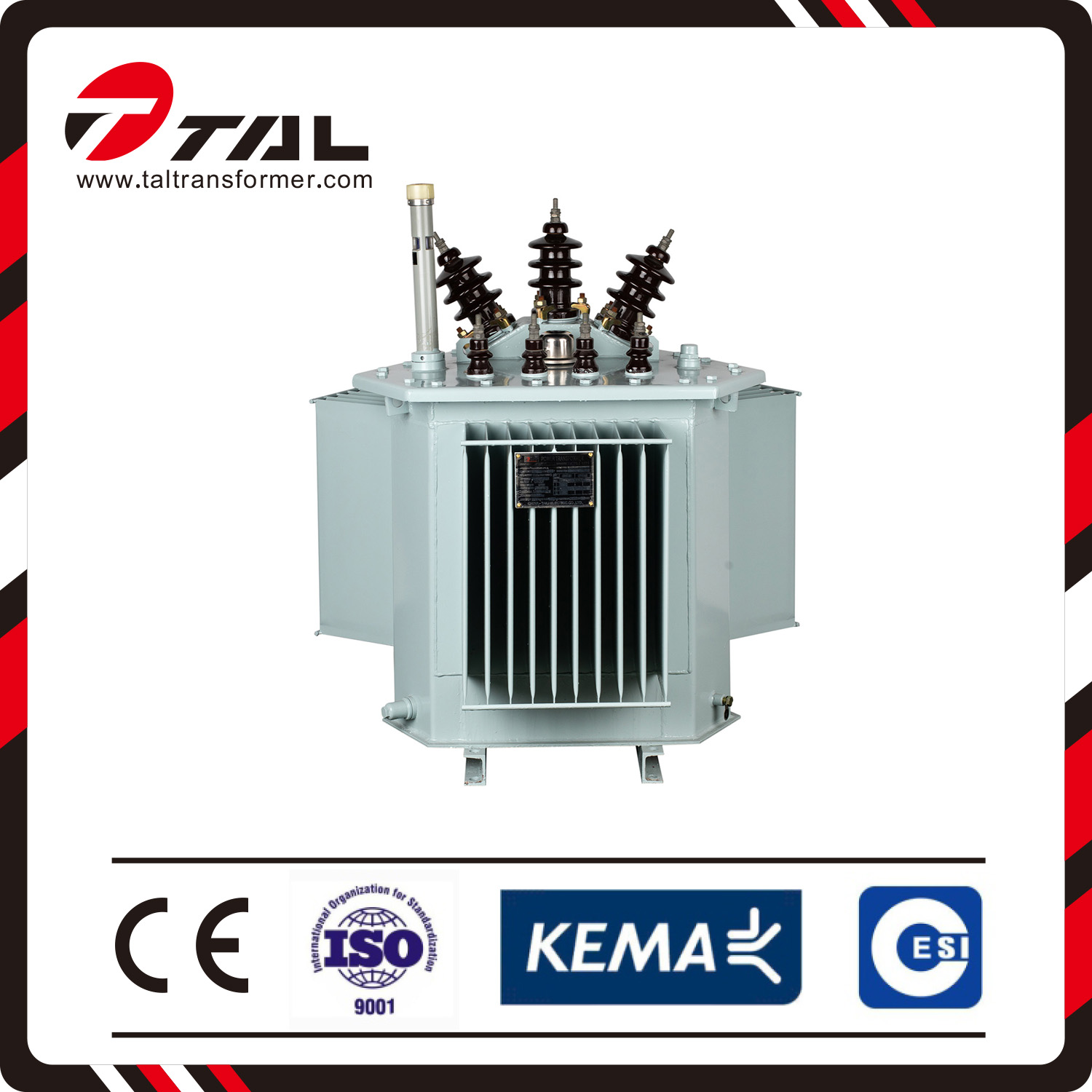

3D Core Oil immersed distribution transformer
3D wound core oil distribution transformers
Product overview
S13-M.RL-80-1600/10-type full – sealed oil-immersed transformers for AC 50Hz, rated working voltage of 10kV and below the power system, as petroleum, metallurgy, chemical, textile, light industry and other corporate and relatively dust Great place for distribution transformers.
online service
S13-M.RL Type 6~10kV
Performance parameters
|
Rated capacity（KVA） |
Voltage Combination and tap range |
connection of transformer winding |
No-load loss (w) |
Load loss (W) |
No-load current (%) |
Short circuit impedance (%) |
||
|
High voltage (KV) |
High voltage tap range( %) |
Low voltage (KV) |
||||||
|
30 50 63 80 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 |
6 6.3 6.6 10 10.5 11
|
±5% ±2x2.5% |
0.4
|
Dyn11 Yzn11 Yyn0
|
80 100 110 130 150 170 200 240 290 340 410 480 570 700 830 970 1170 |
630/600 910/870 1090/1040 1310/1250 1580/1500 1890/1800 2310/2200 2730/2600 3200/3050 3830/3650 4520/4300 5410/5150 6200 7500 10300 12000 14500 |
0.3 0.24 0.23 0.22 0.21 0.2 0.19 0.18 0.17 0.16 0.16 0.16 0.15 0.15 0.14 0.13 0.12 |
4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.5 4.5 4.5 4.5 4.5 |
|
Dyn11 Yyn0
|
||||||||
