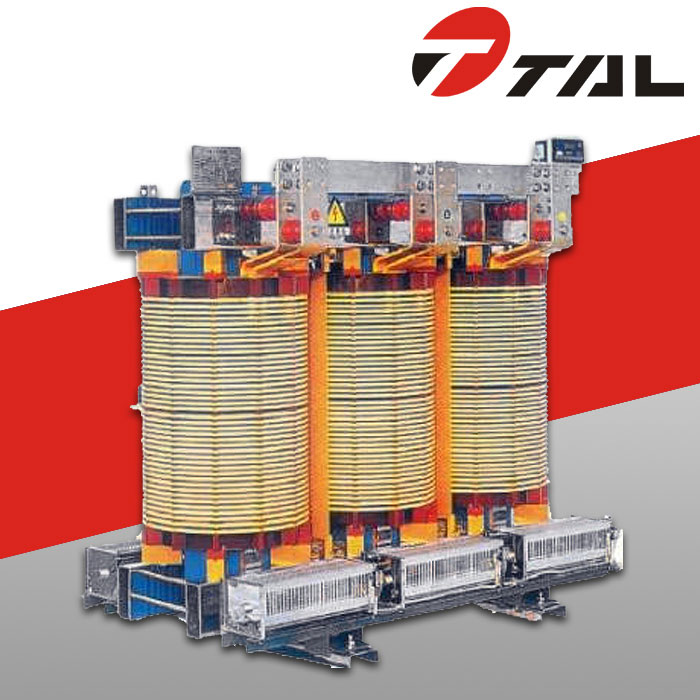

SGB(H)11 type H-class insulation dry-type distribution transformer

Environmental Protection Dry Type Distribution Transformer

online service

Tel:86-577-62803669

Email: cntal2012@gmail.com

Skype: yeerbo1991

WhatsApp: +86 15067876688

Environmental protection dry type distribution transformer

Work condition

Altitude: not exceed 1000m;

Supply voltage waveform: similar to a sine wave;

Symmetry multiphase power supply voltage: polyphase transformer connected supply voltage should be approximately symmetrical;

Ambient temperature: Maximum temperature + 40℃;the highest daily average temperature +30 ; The highest annual average temperature is + 20 minimum temperature of -30 suitable for indoor type transformer).

Structure

High standards of safety, Non-flammable resin, no toxic gas, no combustion;

Reduction in volume and weight per KVA;

Increase the capacity of the emergency overload;

Repair, easy to maintain;

Low noise;

Humidity, insensitive to dust, pollution;

Running without partial discharge and without the possibility of "cracking";

Design flexibility, customers can request the design of any specification made need.

SGB11 Type 6~10kV

The main technical parameters

Rated capacityKVA

Voltage Combination and  tap  range

connection of transformer winding

No-load loss

(w)

Load loss (W)

No-load current (%)

Short circuit impedance (%)

High voltage(KV)

High voltage taps range (%)

Low voltage(KV)

80

100

125

160

200

250

315

400

500

630

800

1000

1250

1600

2000

2500













 6.3

6.6

10

10.5

11

















            ±5%

 ±2x2.5%

















       0.4

















               Dyn11

                 Yyn0

340

360

430

490

560

650

790

880

1050

1170

1370

1590

1880

2210

2990

3600

1750

2170

2590

3100

3970

4680

5610

6630

7950

9780

11560

13350

15640

18110

21250

24740

     2.2

2.0

1.8

1.8

1.6

1.6

1.4

1.4

1.4

1.2

1.2

1.1

1.1

1.1

1.0

1.0

4

4

4

4

4

4

4

4

4

6

6

6

6

6

6

6
