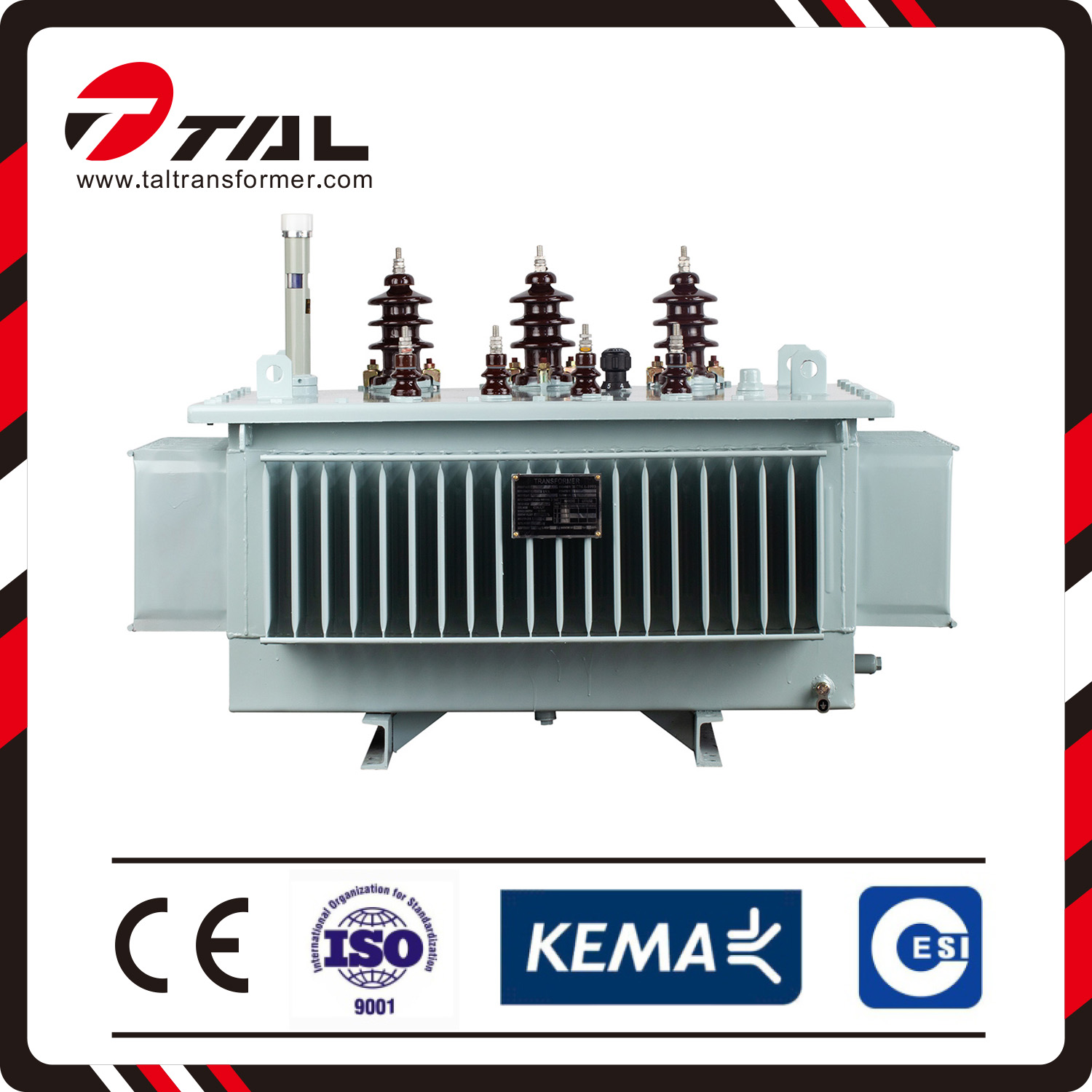

Amorphous alloy core transformers
Amorphous alloy oil-immersed transformer
online service
Amorphous alloy
oil-immersed transformer
Product introduce
Transformers can transform the voltage of a network into
the voltage matching the system or load and fulfill power transferring and
distributing. Replace the transformer with a silicon steel
core. AMDT can be widely applied
in outdoor power distribution network systems, which is magnificently energy
saving and can reduce air pollution. It is especially applicable for areas with
insufficient power supply or fluctuating load and where daily maintain is hard.
The hermetically sealed construction of AMDT prevents the oil and insulation
material from being polluted, so the unit can serve in a humid environment.
AMDT are the ideal equipment supplying power for distribution network in urban
and rural areas.
Advantage of structure
The core is wound with
amorphous alloy ribbons, which possesses a no-load loss 80% lower than S9 type
transformer(with silicon steel core); The LV coils are wound with copper foil,
which reinforces the ability to withstand short circuit for the transformer
AMDT with connection Dyn11 can lighten harmonics impact on the network and
improve the quality of the power supplied; The tank and cover are welded
together, forming a hermetically sealed construction which lengthens the
service life of AMDT and makes it repair-free; The vacuum oil filling
eliminates all bubbles in the coils to ensure stable characteristics of
insulation; Each transformer passes a full-wave lighting impulse test before delivery
to ensure its safety operation. A peak voltage 25% higher than the value
required by national standard is applied during the test.
SBH15-M
Type 6~10kV
Single
phase oil immersed amorphous alloy distribution transformer
The main
technical parameters
Rated capacity（KVA）
Voltage
Combination and tap range
connection of transformer winding
No-load
loss
(W)
Load
loss (W)
No-load
current (%)
Short
circuit impedance (%)
High
voltage
(KV)
High
voltage tap range
( %)
Low
voltage
(KV)
5
10
16
20
30
40
50
63
80
100
125
6
6.3
10
10.5
11
±5%
±2x2.5%
2 x（0.22~0.24）
or
0.22~0.24
II0
II6
20
20
20
30
30
40
40
50
60
70
90
150
260
370
430
630
780
1100
1140
1400
1650
1950
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.9
0.8
0.7
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
Oil
immersed amorphous alloy distribution transformer
The main
technical parameters
Rated capacity（KVA）
Voltage
Combination and tap range
connection of transformer winding
No-load
loss
(W)
Load
loss (W)
No-load
current (%)
short circuit impedance (%)
High
voltage
(KV)
High
voltage tap range
( %)
Low
voltage
(KV)
30
50
63
80
100
125
160
200
250
315
400
500
630
800
1000
1250
1600
2000
2500
6
6.3
6.6
10
10.5
11
±5%
±2x2.5%
0.4
Dyn11
Yyn0
33
43
50
60
75
85
100
120
140
170
200
240
320
380
450
530
630
750
900
630/600
910/870
1090/1040
1310/1250
1580/1500
1890/1800
2310/2200
2730/2600
3200/3050
3830/3650
4520/4300
5410/5150
6200
7500
10300
12000
14500
17400
20200
1.70
1.30
1.20
1.10
1.00
0.90
0.70
0.70
0.70
0.50
0.50
0.50
0.30
0.30
0.20
0.20
0.20
0.20
0.20
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
4.5
4.5
4.5
4.5
5.0
5.0
SBH15-M
Type 20kV
Oil-immersed
amorphous alloy core power transformer
The main
technical parameters
Rated capacity（KVA）
Voltage
Combination and tap range
connection of transformer winding
No-load
loss
(W)
Load
loss (W)
No-load
current (%)
Short
circuit impedance (%)
High
voltage
(KV)
High
voltage tap range
( %)
Low
voltage
(KV)
30
50
63
80
100
125
160
200
250
315
400
500
630
800
1000
1250
1600
2000
2500
24
22
20
±5%
±2x2.5%
0.4
Dyn11
Yyn0
40
55
65
75
90
100
120
145
165
200
240
290
370
450
530
620
750
900
1080
690/660
1010/960
1200/1150
1440/1370
1730/1650
2080/1890
2540/2420
3000/2860
3520/3350
4210/4010
4970/4730
5940/5660
6820
8250
11330
13200
15950
19140
22220
1.50
1.20
1.10
1.00
0.90
0.80
0.60
0.60
0.60
0.50
0.50
0.50
0.30
0.30
0.30
0.20
0.20
0.20
0.20
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
