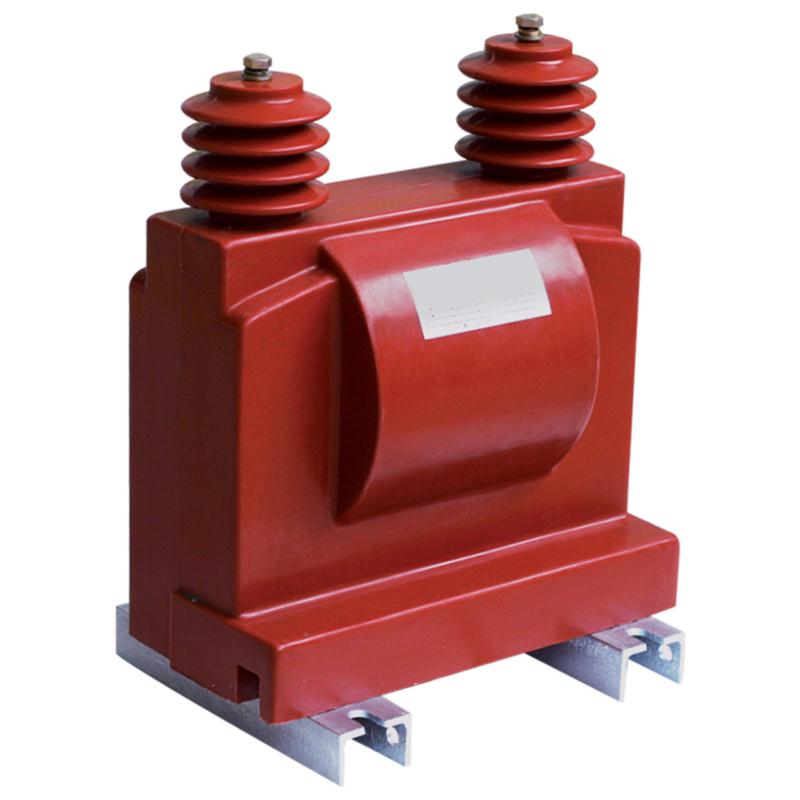

JDZW-10 outdoor voltage transformer

Product overview

The JDZW-10 outdoor voltage transformer is an insulated and fully enclosed structure for outdoor epoxy resin casting. It is suitable for voltage, energy measurement and relay protection in power systems with AC 50Hz and rated voltage 10KV and below. It can apply to rural outdoor substations, but also for industrial, small enterprises and power distribution.

JDZW-10 outdoor voltage transformer is a pillar structure, which is fully enclosed and casted by outdoor epoxy resin. It has the characteristics of arc resistance, UV resistance, aging resistance and long life. Because the transformer is fully enclosed and casted, it is small in size and light in weight. It can be installed in any position and installed in any direction. The secondary outlet end has a wiring protection cover, and a wire outlet hole is arranged below it, and the anti-stealing measures can be realized. Safe and reliable, there are 4 mounting holes on the base channel.

Technical Parameters

Model

Rated voltage ratioV

Accuracy grade and rated secondary output (VA)

Limit output

VA

Rated insulation level

kV

0.2

0.5

Level 1

Level 3

0.2/0.2

0.5/0.5

6P

0.2/0.5

JDZW-10

10000/100

40

80

200

300

/

/

/

1000

12/42/75

10000/220

40

80

200

600

/

/

/

10000/100/100

/

/

/

/

25/25

40/40

/

300/300

10000/100/220

/

/

/

/







300/800
