Three-Phase Oil-Immersed Mining Power Transformer HV:6KV/6.3KV/6.6KV
online service

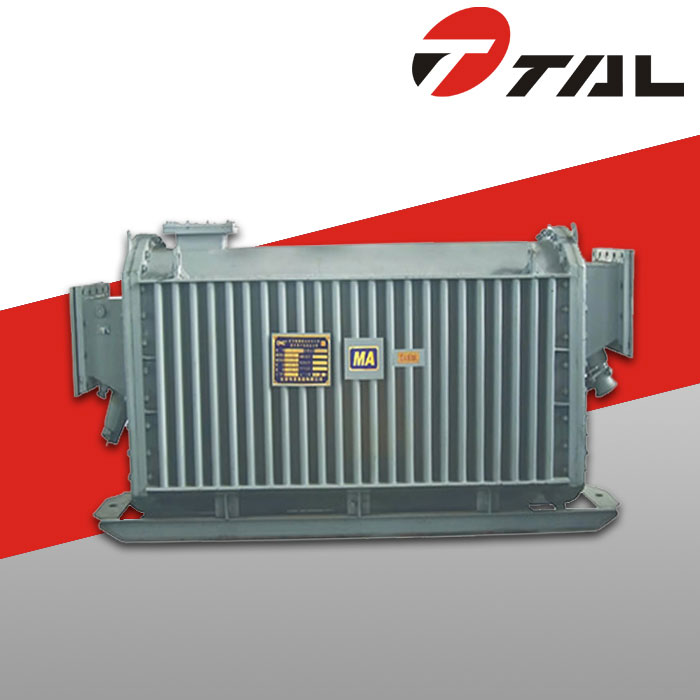

THREE-PHASE OIL-IMMERSED MINING POWER TRANSFORMER
KS9 series oil immersed mining transformer
|
Rated Capacity (kVA) |
Voltage Group (kV) |
Vector group |
Impedance voltage |
Loss(kV) |
No-load current |
Weight(kg) |
(mm) Outline dimension |
|||
|
No-load |
Load |
Body |
Oil |
Total |
||||||
|
50 |
(HV) 10 6 (LV) 0.693/0.4 |
Yyo-d11 |
4 |
0.17 |
0.87 |
2.0 |
230 |
80 |
390 |
1200×950×900 |
|
80 |
0.25 |
1.25 |
1.8 |
310 |
100 |
530 |
1300×950×950 |
|||
|
100 |
0.29 |
1.50 |
1.6 |
360 |
110 |
600 |
1300×950×1000 |
|||
|
125 |
0.34 |
1.80 |
1.5 |
425 |
120 |
690 |
1300×950×1000 |
|||
|
160 |
0.40 |
2.20 |
1.4 |
480 |
140 |
810 |
1350×950×1040 |
|||
|
200 |
0.48 |
2.60 |
1.3 |
580 |
170 |
955 |
1400×970×1080 |
|||
|
250 |
0.56 |
3.05 |
1.2 |
670 |
180 |
1100 |
1450×1000×1100 |
|||
|
315 |
0.67 |
3.65 |
1.1 |
775 |
240 |
1305 |
1500×1000×1150 |
|||
|
400 |
0.80 |
4.30 |
1.0 |
940 |
280 |
1570 |
1600×1050×1150 |
|||
|
500 |
0.96 |
5.10 |
1.0 |
1155 |
300 |
1970 |
1650×1050×1200 |
|||
|
630 |
4.5 |
1.20 |
6.20 |
0.9 |
1310 |
345 |
2150 |
1650×1120×1220 |
||
