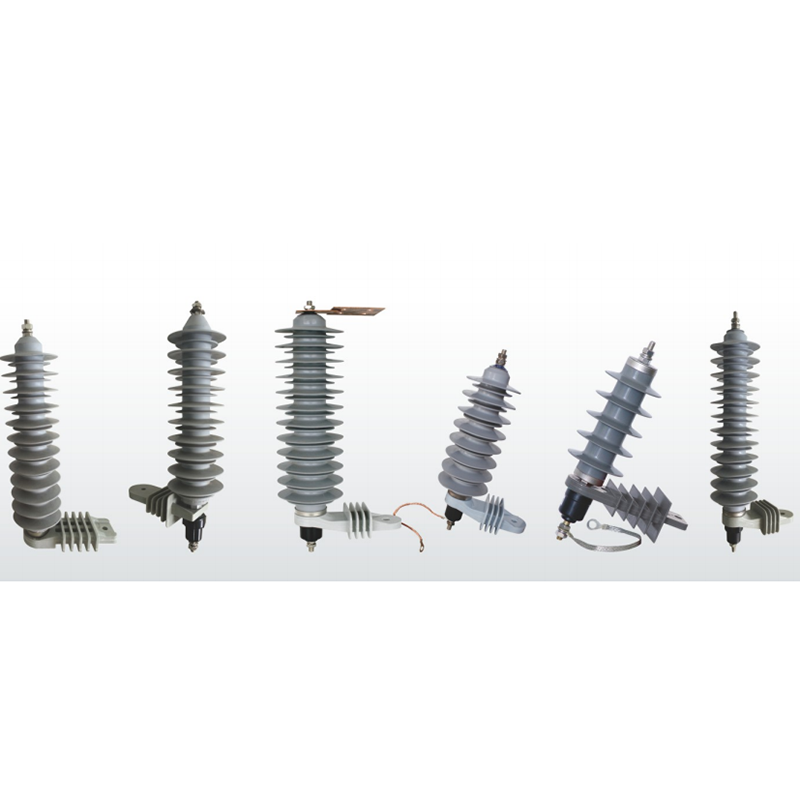

ZnO Lightning Arrester Series
Main principle
ZnOlightning arrester is one kind most world advanced over-voltage protector at present. Due to its core components of resistance applying ZnO and other metal oxide to make of, comparing with traditional carborundum arrester. It improves greatly V-A characteristics of Resistance, increases the getting through ability of resistance, thereby it brings fundamental change to features or arrester.
Undernormal working voltage, the current passing arrester only A class, when bearing over voltage, the excellent non-linear V-A features of arrester would make effect, the current passing through the arrester increase high to thousands of Ampere instant, the arrester is under getting through state, to release over-voltage energy, therefore it effective limits the damage to power transmission equipments due to over voltage.
Using environments
Ambient temperature range﹣40℃~﹢40℃;
Above sea level no higher than 1000m (order should be indicated if use in tableland area);
Power frequency is 48-62Hz;
Continuous power frequency voltage on the lightning arrester no higher than continuous working voltage or lightning arrester;
Utmost wind velocity no higher than 35m/s;
Area where earthquake intensity less than 7 degree;
Messy area should be indicated;
Technical performance
Product performance conforms to National standard technical requirements of GB1 1032-2000 (equal to IEC60099-4).
Main electric features see following table
|
Model |
Rated Voltage |
Continuous operating voltage （KV rms） |
Lightning lmpulse residual Voltage Under Nominal Discharge Current （≤vKp） |
Line Discharge Class |
Creepage Distance（mm） |
2ms square wave impuls current withstand（A） |
4/10μ High Current Impulse Withstand |
|
YH5W-6 |
6 |
4.8 |
18 |
1 |
320 |
150 |
65 |
|
YH5W-9 |
9 |
7.2 |
27 |
1 |
430 |
150 |
65 |
|
YH5W-12 |
12 |
9.6 |
36 |
1 |
430 |
150 |
65 |
|
YH5W-15 |
15 |
12 |
45 |
1 |
530 |
150 |
65 |
|
YH5W-18 |
18 |
14.4 |
54 |
1 |
530 |
150 |
65 |
|
YH5W-21 |
21 |
16.8 |
63 |
1 |
640 |
150 |
65 |
|
YH5W-24 |
24 |
19.2 |
72 |
1 |
640 |
150 |
65 |
|
YH5W-27 |
27 |
21.6 |
81 |
1 |
740 |
150 |
65 |
|
YH5W-30 |
30 |
24 |
90 |
1 |
890 |
150 |
65 |
|
YH5W-33 |
33 |
26.4 |
99 |
1 |
890 |
150 |
65 |
|
YH5W-36 |
36 |
28.8 |
108 |
1 |
1115 |
150 |
65 |
|
YH10W-3 |
3 |
2.4 |
9 |
1 |
180 |
250 |
100 |
|
YH10W-6 |
6 |
4.8 |
18 |
1 |
240 |
250 |
100 |
|
YH10W-9 |
9 |
7.2 |
27 |
1&2 |
300/340 |
250 |
100 |
|
YH10W-12 |
12 |
9.6 |
36 |
1&2 |
380/400 |
250 |
100 |
|
YH10W-15 |
15 |
12 |
14 |
1&2 |
400/450 |
250 |
100 |
|
YH10W-18 |
18 |
14.4 |
54 |
1&2 |
510/400 |
250 |
100 |
|
YH10W-21 |
21 |
16.8 |
63 |
1&2 |
580/730 |
250 |
100 |
|
YH10W-24 |
24 |
19.2 |
72 |
1&2 |
640/730 |
250 |
100 |
|
YH10W-27 |
27 |
21.6 |
81 |
1&2 |
710/730 |
250 |
100 |
|
YH10W-30 |
30 |
24 |
90 |
1&2 |
780/1125 |
250 |
100 |
|
YH10W-33 |
33 |
26.4 |
99 |
1&2 |
840/1125 |
250 |
100 |
|
YH10W-36 |
36 |
28.8 |
108 |
1&2 |
920/1125 |
250 |
100 |
|
YH10W-42 |
42 |
33.6 |
126 |
2&3 |
1260 |
400 |
100 |
|
YH10W-45 |
45 |
36 |
128 |
2&3 |
1260 |
400 |
100 |
|
YH10W-54 |
54 |
42 |
160 |
2&3 |
1260 |
400 |
100 |
|
YH10W-60 |
60 |
48 |
178 |
2&3 |
1465 |
400 |
100 |
|
YH10W-66 |
66 |
52.8 |
196 |
2&3 |
1465 |
400 |
100 |
|
YH10W-72 |
72 |
57 |
214 |
2&3 |
2255/2780 |
400 |
100 |
|
YH10W-84 |
84 |
67.2 |
244 |
2&3 |
2255/2780 |
400 |
100 |
|
YH10W-90 |
90 |
72.5 |
249 |
2&3 |
2255/2780 |
400 |
100 |
|
YH10W-96 |
96 |
77 |
265 |
2&3 |
3555 |
800 |
100 |
|
YH10W-108 |
108 |
84 |
281 |
2&3 |
3555 |
800 |
100 |
